Hydroquip Hydraulics

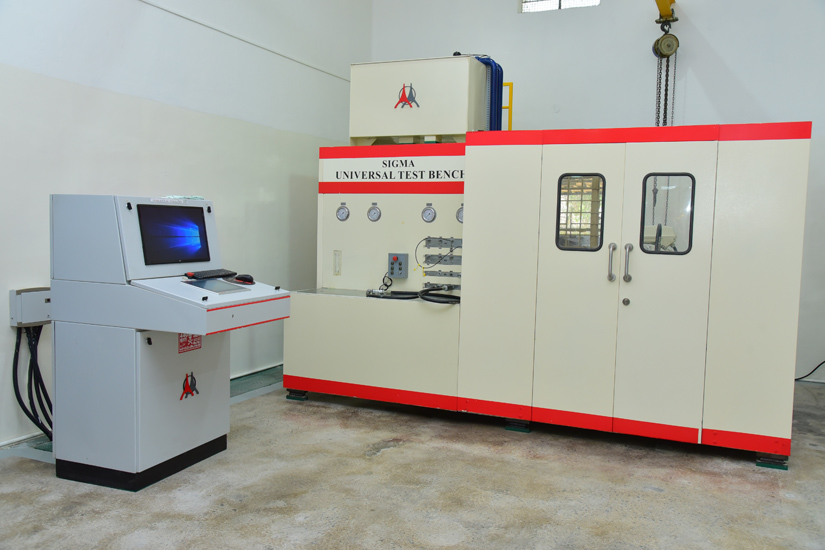

Hydroquip is a recognized test and calibration facility for Kawasaki Pumps and Motors in India. A dedicated computerized Test Rig – SIGMA – was designed in-house with all latest features and its used for all test and validation of both Kawasaki Pumps & Motors and SUN manifolds.

  • Variable delivery pumps up to 280 CC can be tested
  • Most common types of control can be tested – Load Sensing / Pressure Compensation / Torque Control / Electric or Hydraulic displacement control
  • Hydraulic motors of any displacement can be tested for performance and internal leaks
  • Any complex SUN manifold can be tested for full functionality and reports generated.
  • Total connected power 75 kW out of which 30 kW is VFD controlled for speed regulation.
  • Maximum Pressure capability 400 Bar and Flow capability 300 Lpm

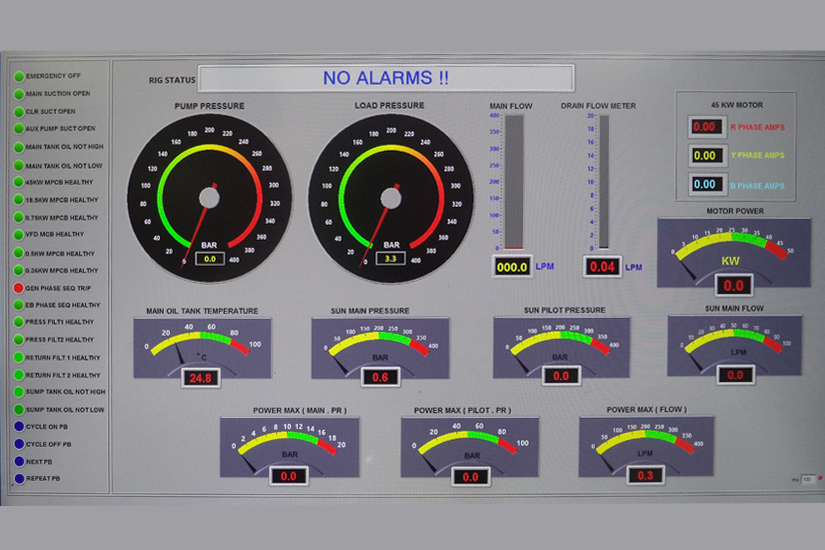

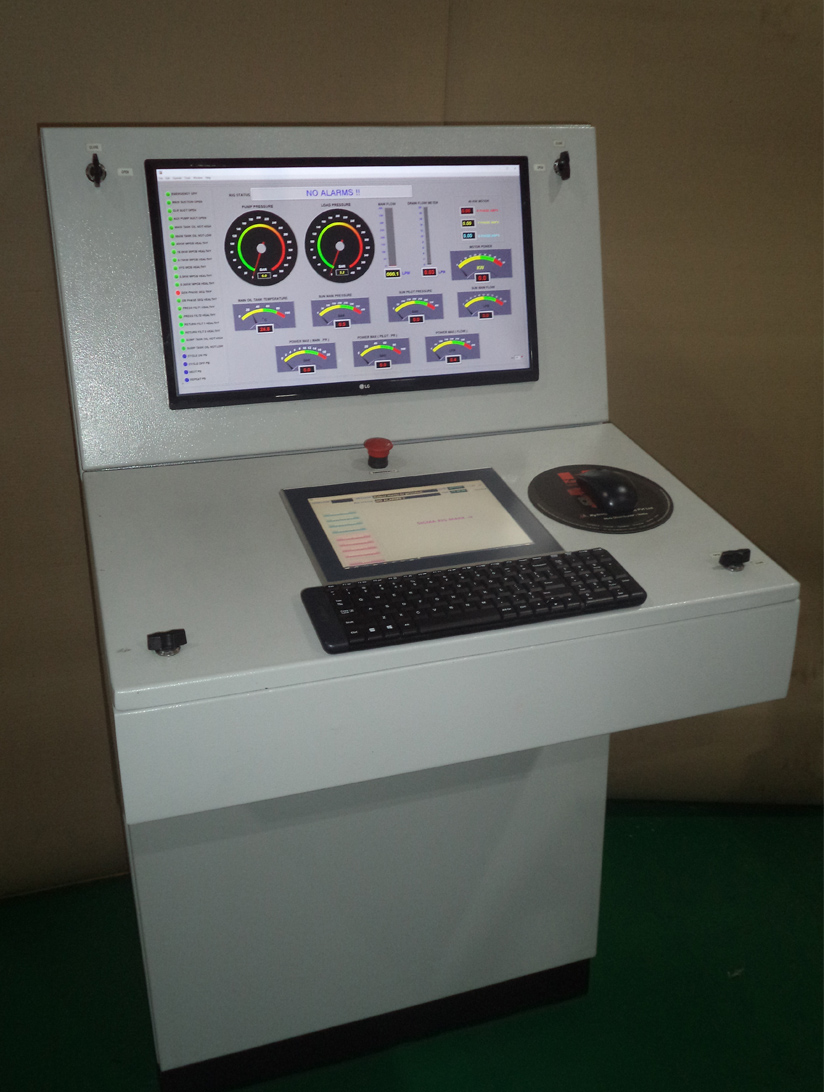

  • Full Rig operation controlled by dedicated software developed in LabVIEW
  • Rig capable of running either in full manual or semi auto or full auto mode
  • Auto Report generation verdict for test parameters
  • Full time monitoring for fluid cleanliness and temperature levels.
